    Mini Doppler Ultrasound Equipment 128 Elements B M Ultrasound Linear Probe G10LN

    Ask Lasest Price
    Brand Name : GH
    Model Number : G10LN
    Certification : CE
    Price : 1
    Payment Terms : L/C, D/A, D/P,T/T, Western Union, MoneyGram
    Supply Ability : 50000
    Delivery Time : 3
    • Product Details
    • Company Profile

    Mini Doppler Ultrasound Equipment 128 Elements B M Ultrasound Linear Probe G10LN

    128 Elements Wireless Ultrasound Linear Probe 7.5/10mhz G10LN

    Overview
    Quick Details
    Place of Origin: China
    Brand Name:
    GH
    Model Number:
    G10LN
    Power Source:
    Electricity
    Warranty:
    2 years
    After-sale Service:
    Online technical support
    Material:
    abs
    Shelf Life:
    5 years
    Quality Certification:
    TUV
    Instrument classification:
    Class II
    Safety standard:
    GB 9706.9-2008
    Type:
    b/w Ultrasound scanner
    Product name:
    128 Elements Wireless Ultrasound Linear Probe 7.5/10mhz C10LN
    Application:
    Thyroid,Small Parts,Vascular,nerves,etc
    Display mode:
    B,B/M
    Frequency:
    7.5/10mhz
    Scan Depth:
    90-300mm
    Host:
    ios/android/windows
    Connection:
    802.11.n WIFI(AP)
    Advantage:
    One probe can realize convex,linear,cardiac probe function
    Battery last:
    around 3 hours(continus working)
    Supply Ability
    Supply Ability
    500 Set/Sets per Month
    Packaging & Delivery

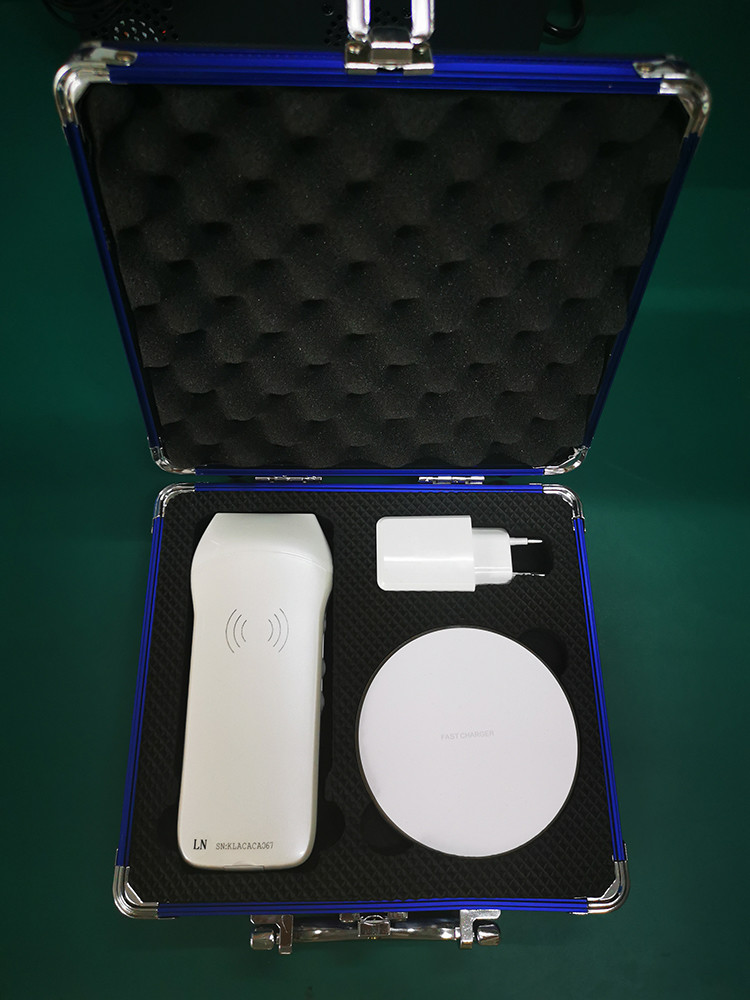

    Packaging Details
    Standard Export Carton,Wireless Linear Probe

    Product Description
    G10LN is a wireless array probe scanner.This wireless probe scanner with integrated ultrasound circuit boards inside, can wireless connect to the iPhone iPad and android phone/tablet that after installed ultrasound software, then realize the functions of a ultrasound scanner.It is small and smart, convenient for carry and operation.In emergency clinical,hospital ward inspection,community clinical and outdoor inspect, Clinical training,Nursing Training,an easy carried & operated compact ultrasound such as wireless probe is desired.

    Features
    • No probe cable to catch the crates
    • Exceptional image quality with Ipad/Android ,windows display
    • Durable design-can be extended to 2-5 yeasrs warranty
    • Save and view images as needed
    • Software upgrades via iPad/iPhone APP store

    Wireless Linear Probe 7.5/10mhz C10LN Technical Specifications

    Scanning system Electronic array sweep
    Frequency Linear:7.5/10mhz
    Scan Depth 40-100mm
    Host iPhone iPad,Android cellphone/tablet,Windows
    Connection 802.11.n WIFI(AP)
    Throughout 54Mbps
    Field of view 80 degree
    Display mode B, B/M, color, PW, PDI
    Image gray scale 256 level
    channel 64
    Frame 24s/f
    Gain 40-110Db

    Measure

    		 distance, area, obstetrics and other

    Length,Area/Circumference,GA(CRL),GA(BPD),GA(GS),

    GA(FL),GA(HC),GA(AC)
    Language English,Chinese,Russian, German, Italian, Spanish, Portuguese
    Power by built-in battery
    Power consumption 4W (probe run) /1.5W (probe stop)
    Battery last around 3 hours(continus working time)
    Size 156mm×60mm×24mm
    Weight 308 gram
    Mobile device minimum requirements

    iOS 7.0 version

    -iPhone 5 or above , ipad mini4, ipad pro, ipad air 2......

    Android 4.01 version
    – Galaxy S3, Tab 10.1(2012)

    Windows:

    -Windows 8 above.
    Fileld Usage Examples

    Linear ultrasound probe : MSK(Muscular-skeletal), Orthopedics, Vascular, Pediatrics, Sports medicine, anesthesia , injection , Puncture , nevers...ect. Point of care, Ultrasound-guided procedures, Veterinary and among other medical fields.

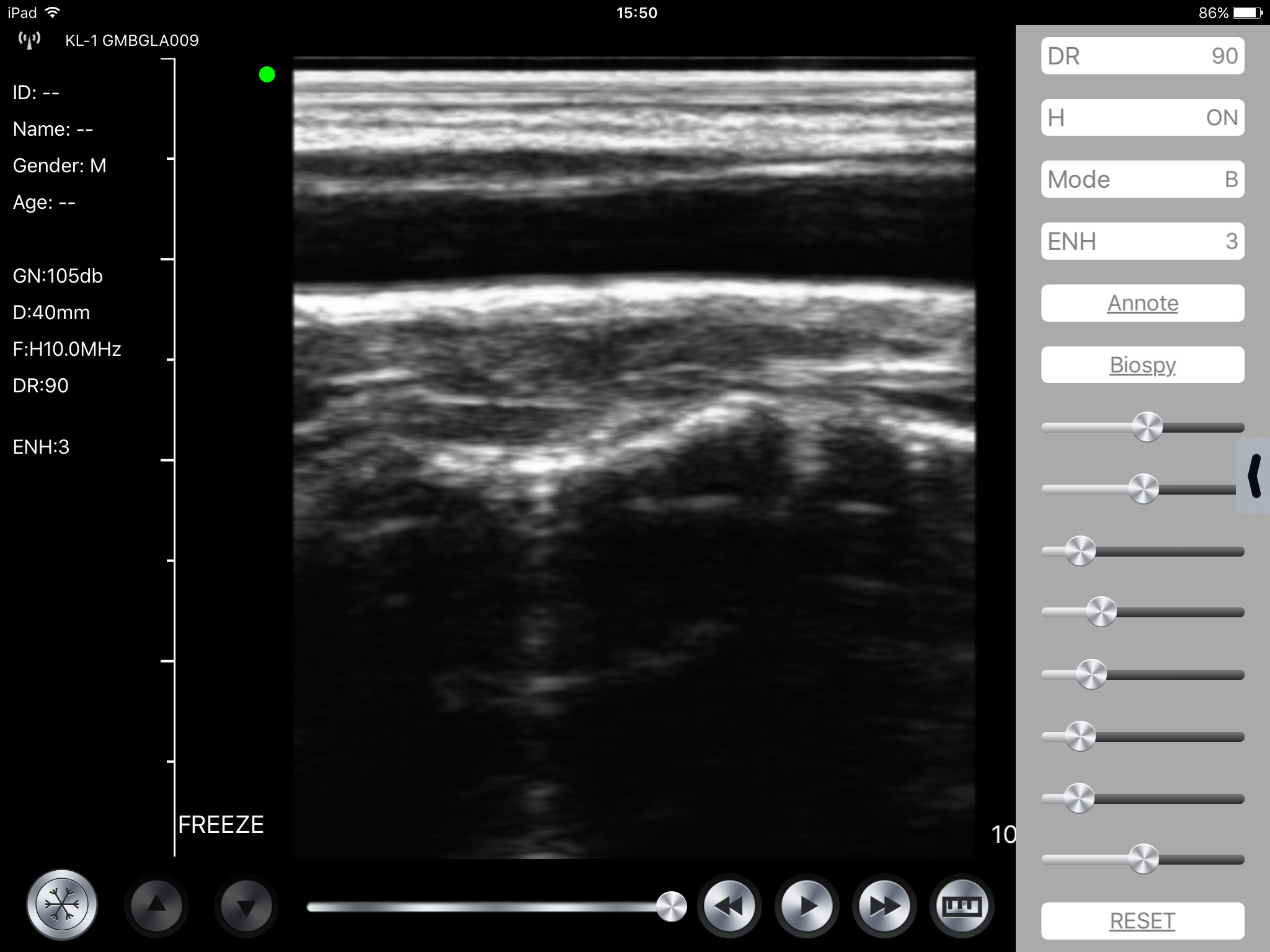

    New Software , New Function
    • Three software : ios , android , windows
    • 8TGC
    • Biospy
    • Annote : Doctor's comments
    • THI(H) : ON/OFF
    • EHN image enhancement : 0. 1. 2. 3. 4.
    • Sepeckle reduce technology
    • Dynamic Range : 40-110db
    • Probe frequency can change :7.5 and 10mhz

    Software upgrade content in May of 2020:

    1. Measurement function Add "angle measurement", "trajectory measurement", obstetrics and gynecology "fetal weight".

    2. Removed the logo in the upper right corner.

    3. Add upside-down, left-right flip in the image interface (green dot on the screen).

    4. Software language Add "Russian, German, Italian, Spanish, Portuguese (Brazil)".

    5. Patient information Add save report function: report contains image + diagnosis result.
