TECHNICAL PARAMETERS |
Certificate | Meeting the CE requirement |

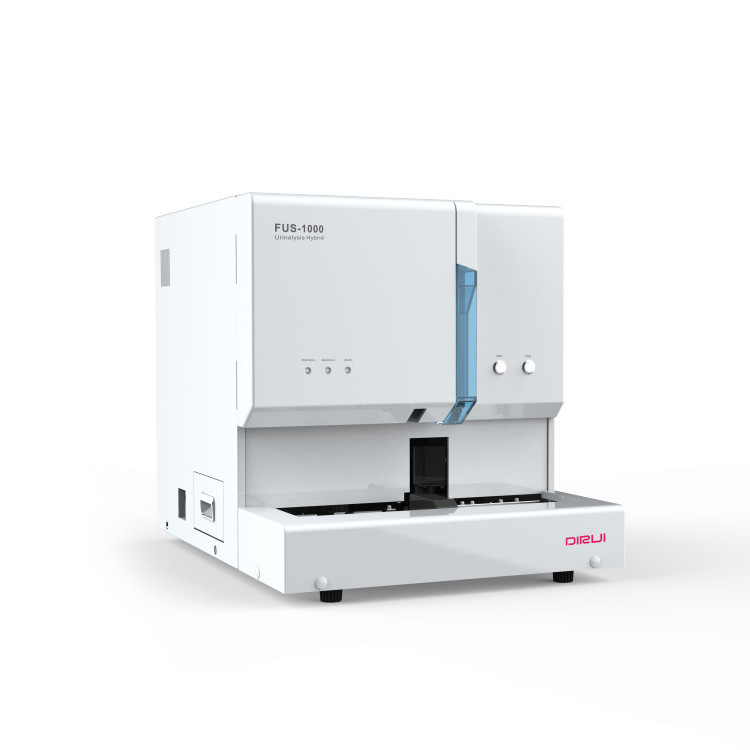

Product Description | FUS-1000 Urinalysis Hybrid enables routine analysis as well as
urine formed element analysis and counting through one sampling. |
Throughput | Formed elements analysis + Chemistry analysis: 60t/h (maximum);
Formed elements analysis: 60t/h (maximum);
Chemistry analysis: 60t/h |
Principle | Formed element testing method: : Flow Type Micro-imaging Technology
Chemistry testing method: Photoelectric colorimetry
SG: Refractive Gravimeter Method
Turbidity: Scattering Method
Color: RGB Primary Colors Method
(SG/Turbidity/Color needs SG unit which is optional) |
Images | 950 real images and 200 times magnification |
Formend elements items | 12 items
Red blood cell (RBC), white blood cell(WBC), white blood cell
cluster (WBCC), squamous epithelial cell (SQEP), non-squamous
epithelial cell (NSE), hyaline cast (HYAL), pathologic cast(UNCC),
bacteria (BACT),
yeast (BYST), unclassified crystal (UNCX), sperm (SPRM) and mucous
strands (MUCS). |
Chemistry items | 14 items maximum
Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood
(BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose
(GLU),
pH value (pH), specific gravity (SG), vitamin C (VC) (optional),
microalbumin (MALB) (optional), creatinine (Cr) (optional) and
urinary calcium (Ca) (optional). |
Physical items | 3 items
Specific gravity (SG) (optional), turbidity (optional), and color
(optional). |
Calculate items | ACR |
Wavelengths | 525 nm, 572 nm, 610 nm, 660 nm |
Sample type | urine |
Sample volume | Min. volume: 3mL non-centrifuged urine; aspiration volume: about
2mL |
Sample capacity | 50 samples |
Maximum capacity of strip sealed bin | 200 strips |
Maximum capacity of waste strip bin | 400 strips |
Door control function | Y |
Strip onboard stability | 3 days (24 h) |
Sample bar code identification | A built-in bar code reader, automatic scanning of sample bar code;
An external bar code reader, manual scanning of bar code
(optional). |
Port | Data communication interface: bidirectional RS-232 communication
interface LIS interface: internet access LIS and serial port LIS |
LIS system | Both-way communication with LIS system is supported |
Test results storage capacity | ≥100,000 data |
Weight | Host: 60kg |
Dimensions (L×W×H) | Host: 520mm×702mm×566mm |
Power consumption | Host: 300VA
Computer: 400VA (optional) |
Working temperature | 10℃~30℃ |
Working humidity | not greater than 75% |
Atmospheric pressure | 75kPa~106kPa |
Supply voltage | 100V-240V~ 50/60Hz |
