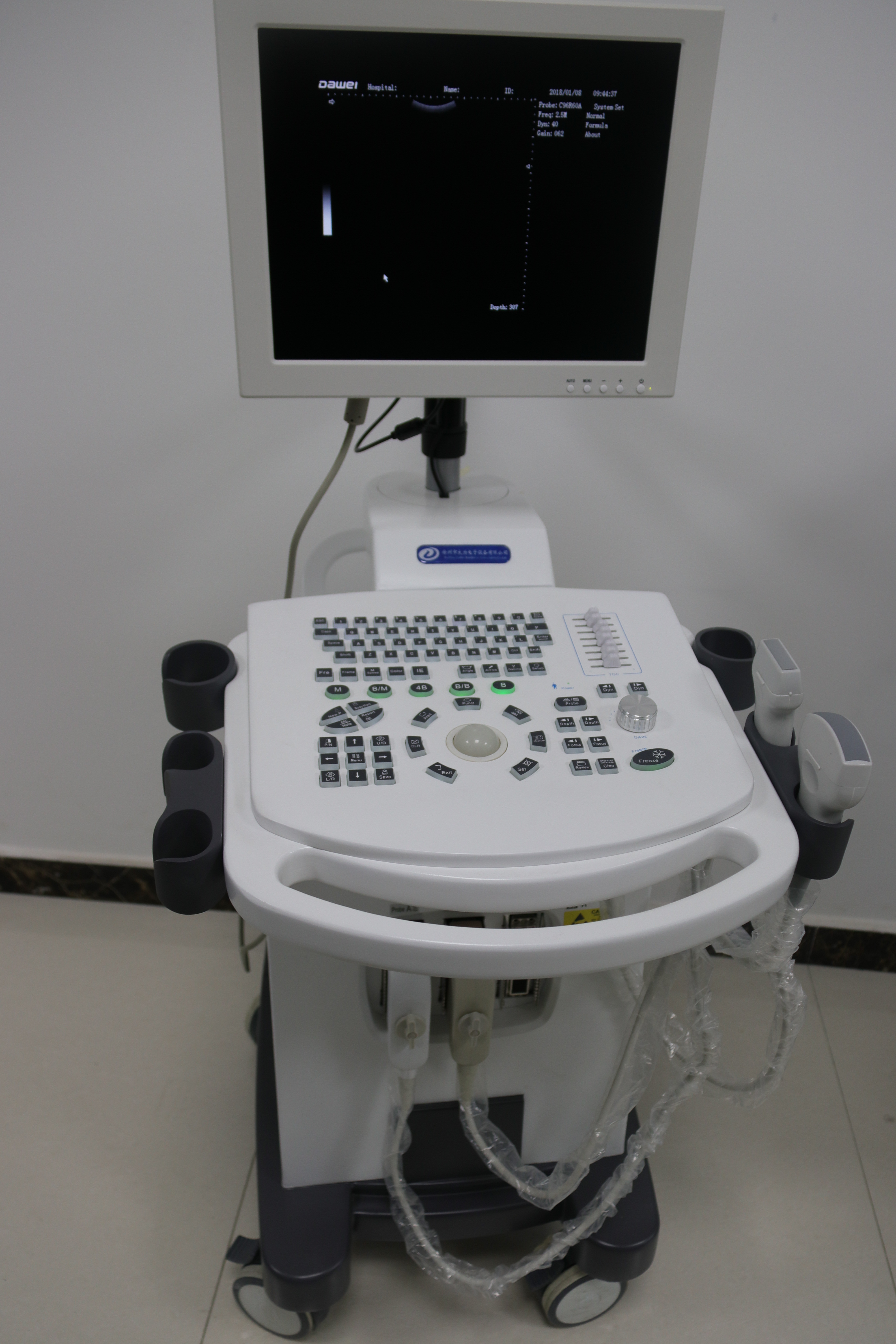

medical ultrasonic scanner & trolley B mode ultrasound machine
ultrasonography ultrasound machine & medical equipment manufacturer Main features:
1. High-accuracy DSC digital scan conversion
2. Intelligentized TGC gain control of the whole paragraph 8
3. Photoelectricity track control
4. 14 inch SVGA non-interlaced high resolution monitor
5. Focus on multi-stage firing, the whole dynamic receiving focusing
6. Backlit silicone keyboard
ultrasonography ultrasound machine & medical equipment manufacturer specification:
| Scanning mode | convex / linear / micro-convex |
| Probes | Convex, Linear, Transvaginal, Rectal probe |
| Display | 15 inch LCD high resolution monitor |
| Display modes | B, B+B, 4B, B+M, M |
| Scanning depth | 244mm |
| Lateral resolution | ≤2mm (depth≤80mm) ≤3mm (80< depth≤130mm) |
| Axial resolution | ≤1mm (depth≤80mm) ≤ 2mm (80< depth≤130mm) |
| Blind Zone | ≤3 mm |
| Geometry precision | lateral≤5%, axial≤5% |
| Gray scale | 256 |
Electronical focusing multi-point or dynamic focusing
| Magnification | ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 local zoom |
| Dynamic scope | 0~100dB, visible & adjustable |
| Pseudo color | 16 |
| Note | ID, gender, age, hospital, doctor, comment, date, time |
| Body mark | 16 |
| Probe interface | 2 |
| permanent image storage | 128 |
| Puncture guide | puncture guide line can be displayed under B mode |
| Gain control | The total gain, 8-segment TGC |
| Image conversion | up/down, left/right, black/white |
| Cine loop | 256 frames |
| Image review | Images can be reviewed successively or checked one by one |
| Measurement | distance, perimeter, area, heart rate, gestational week (BPD, CRL, GS, FL, AC) |
| Video output | SVGA (SVGA color monitor), PAL-D |
| Main power supply | AC220V±22V, 50/60Hz |
Standard configuration:
Backlit silicone keyboard
14 inch high resolution CRT
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Options:
6.5MHz Trans-vaginal probe
7.5MHz High frequency linear probe
7.5MHz rectal probe
|
|
