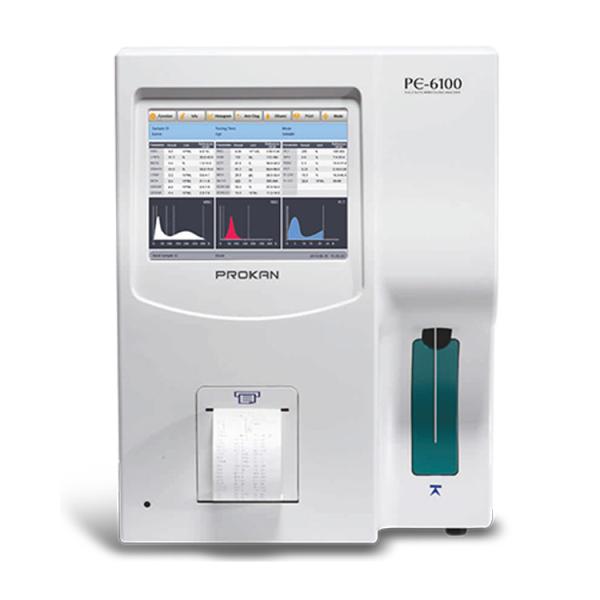

Anesthesia Laboratory Medical Equipment Blood Auto Hematology Analyzer Machine

Ask Lasest Price
Brand Name :	GH
Model Number :	GH-PE6100
Certification :	CE
Price :	1
Payment Terms :	L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability :	50000
Delivery Time :	7

Add to Cart

Product Details
Company Profile

Anesthesia Laboratory Medical Equipment Blood Auto Hematology Analyzer Machine

Fully Auto Hematology Analyzer blood testing equipments Automatic hematology analyzer

Overview

Quick Details

Type:: Blood Analysis SYstem

Brand Name:: GH

Model Number:: GH-PE6100

Place of Origin:: China

Instrument classification:: Class II

Warranty:: 1 Year

After-sale Service:: Online technical support

Product name:: Automatic hematology analyzer

Function:: Blood analyzer

Feature:: Fully automatic

Weight:: 28KG

Usage:: Medical Lab

Keywords:: blood testing equipments

Power Supply:: AC100-240V 50/60HZ

Display:: 8.4" LCD

Color:: White

Package:: standard

Supply Ability

Supply Ability: 300 Set/Sets per Month

Packaging & Delivery

Packaging Details: standard export packaging

Port: Tianjin or Qingdao

* Principle:Electrical resistance for counting, cyanide free method
for hemoglobin
* Parameters: 3-part differential of WBC; 20 parameters (WBC, LYM#,
MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC,
RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR) + 3 color histograms
(WBC/RBC/PLT)
*Sample Consumption: Venous mode: 9.6μL, Capillary mode: 9.6μL,
Pre-diluted mode: 20μL
* Working Mode: Double passages counting detection+independent HGB
measurement system; 24 hours with auto standby
* Operation Mode: USB keyboard & mouse (PE-6000Plus: Touch screen)
* Throughput: ≥60 samples/hour
* Storage: 50,000 sample results inclusive of the histograms
* QC Mode: L-J QC mode
* Cross Contamination Ratio: WBC/RBC/HGB﹤0.5%, PLT﹤1%
* Performance:
Parameter Repeatability (CV%)Linear Range
WBC≤2.5%0.00-99.9×10^9/L
RBC≤2.0%0.00-99.9×10^12/L
HGB≤1.5%0-300g/L
MCV≤0.4%40-150fL
PLT≤5.0%0-999×10^9/L* Display: 8.4”LCD, resolution: 800×600
* Reference Value: Baby, Kid, Woman, Man, Normal and Customization
* Interface: 4×USB, 1×ethernet, 1×VGA (for external monitor)
* Printer: Built-in thermal recorder, optional external printer,
eight report formats
* Environment Requirement: Temperature: 15℃~35℃; Humidity: 10%-90%

Specification

item	value
Type	Blood Analysis SYstem
Brand Name	QZ
Model Number	QZ-PE6100
Place of Origin	China
Instrument classification	Class II
Warranty	1 Year
After-sale Service	Online technical support
Product name	Automatic hematology analyzer
Function	Blood analyzer
Feature	Fully automatic
Weight	28
Usage	Medical Lab
Keywords	blood testing equipments
Power Supply	AC100-240V 50/60HZ
Display	8.4" LCD
Color	White
Package	standard

If you need other medical supplies, please feel free to contact us!
We will do our best to provide you good service. Welcome to
consult!
