Certificate | Meeting the CE requirement |
Manufacture | DIRUI INDUSTRIAL CO.,LTD.
95 Yunhe street,New & High Tech. Development Zone,Changchun,Jilin
130012,P.R. China.
|

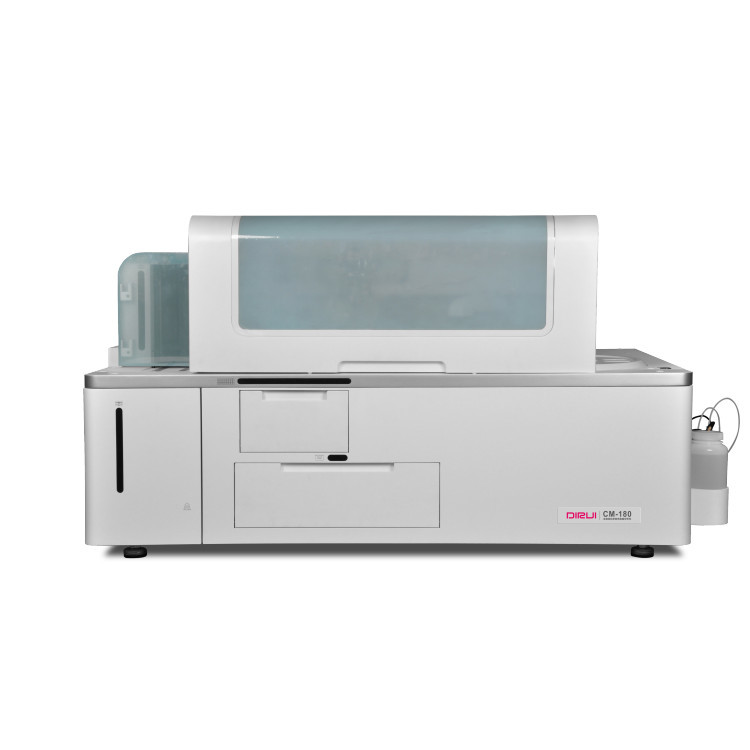

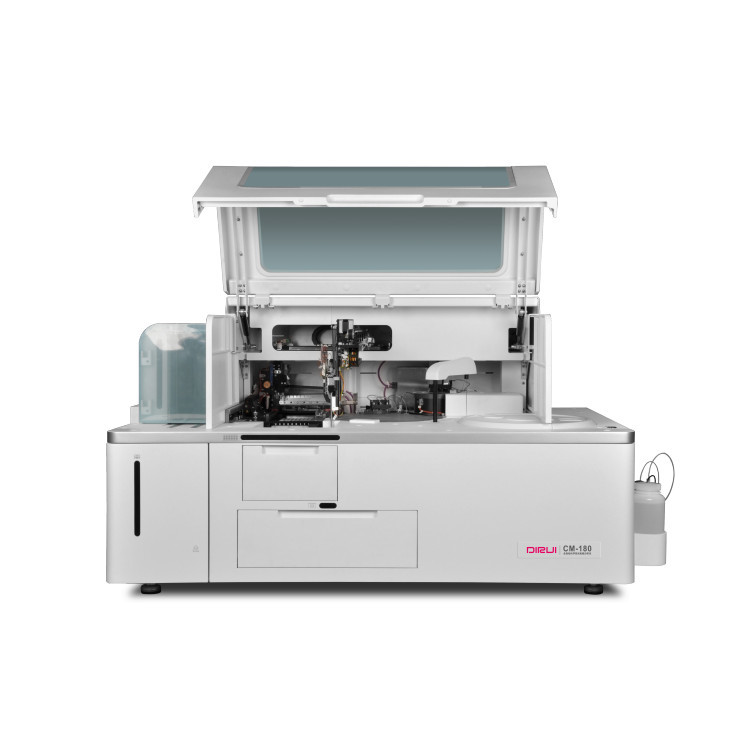

Product Description | CM-180 Chemiluminescence Immunoassay Analyzer is a test instrument
with an external computer and it is used for emergency
treatment with priority. The Analyzer has functions including
automatic sample dispensing, reagent dispensing, incubation,
mixing,
rinsing, reaction detection and results calculation, display and
printing. It completely imitates and replaces the manual
operation. It not only improves work efficiency, but also reduces
test error and improves the accuracy and precision of test
results. Scope of application: Used in conjunction with matching
reagents, for qualitative and quantitative analysis of analytes
in the human sample.
Contraindication: None. |
Basic features | Reaction temperature | 37℃ |
Test items | At most 25 items can be simultaneously tested. |
Test method | Chemiluminescence immunoassay |
Test speed | 180 tests/ hour |
Reagent system | Reagent disk, reagent position | With refrigerated reagent disks, 25 refrigerated reagent positions |
Reagent volume | 20μL～300μL |
Reagent bottle specification | 12.0mL, 22.5mL and 34.5mL |
Storage temperature of reagent | 2℃～8℃ |
Reagent liquid level sensor | Integrated with probe mechanism |
Sample system | Sample bin, sample position | 90 samples can be placed |
Barcode identification system | 2 built-in bar code readers,one standard, one optional |
Sample volume | 10μL～150μL |
Sample liquid level sensor | Integrated with probe mechanism |
Liquid level detection | Reagent probe & Sample probe |
Data system | Interface | Network interface |
Computer configuration | Optional computer and printer |
Connection with LIS/HIS system | It is supported |
Analytical system | Cuvette positions of Analyzer | 55 for reaction disk |
Volume of cuvette | 1000 μL |
Optical system | Photon counter |
QC | Real-time QC, daily QC and monthly QC |
Mixing system | Non-contact mixing |
Entire machine system | Weight | About 200 kg |
Power consumption | 1000VA |
Physical dimensions | 1230mm×757mm×554mm (L×W×H) |
| | |
Normal operating conditions of the Analyzer: | |
| Supply voltage: 220/230V~, 50/60Hz |
| Environmental temperature: 10℃~30℃ |
| Relative humidity: not more than 70% |
| Atmospheric pressure: 75kPa~106kPa |
| Be away from strong electromagnetic interference sources |
| Prevent direct strong light exposure |
| Good grounding environment |
