3 Inch Screen Portable Rigid Video Fiber Optic Laryngoscope For Neonate

Ask Lasest Price
Brand Name :	GH
Model Number :	GH-IS
Certification :	CE
Price :	1
Payment Terms :	L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability :	50000
Delivery Time :	7

Add to Cart

Product Details
Company Profile

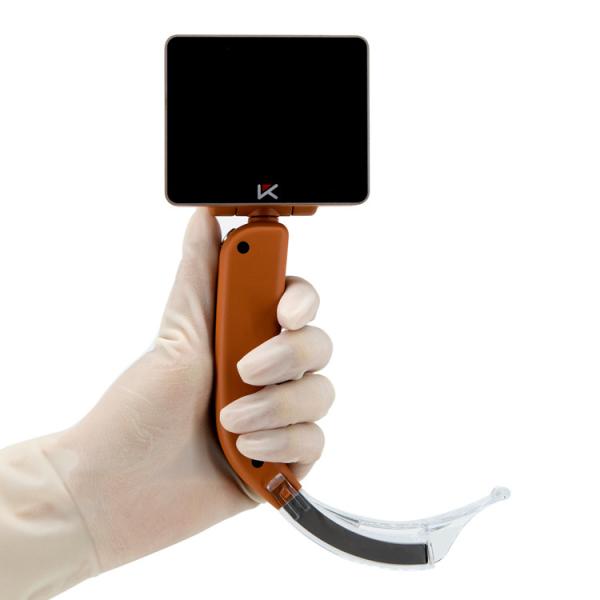

3 Inch Screen Portable Rigid Video Fiber Optic Laryngoscope For Neonate

3 inch screen portable rigid video laryngoscope set for neonate

Overview

Quick Details

Place of Origin:: China

Brand Name:: GH

Model Number:: GH-IS

Power Source:: Electric

Warranty:: 1 Year, 1 Year

After-sale Service:: Online technical support

Material:: Plastic

Shelf Life:: 1years

Quality Certification:: ce

Instrument classification:: Class II

Safety standard:: None

Product name:: Video laryngscope

Application:: Surgical

Function:: Auxiliary tracheal intubation

Screen size:: 3.0 Inch OLED

Feature:: Portable

Certificate:: CE ISO

Advantages:: Easy Control

Keywords:: video laryngscope

MOQ:: 1 set

Supply Ability

Supply Ability: 1000 Set/Sets per Month

3 inch screen portable rigid video laryngoscope set for neonate

Neonate / Pediatric Video Laryngoscope

70˚ Tilt Screen
 When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without
 changing your technique.

70˚ Tilt Screen
 When space is restricted, the Mole Display can be tilted, optimizing your visual placement of the laryngoscope blade without changing your technique.
 Plug & Go
 Mole Video Laryngoscope has an intuitive interface. Wake the display with one touch of a button. The responsive, text-free display is ready to go.
 More Available Space
 At 12mm height, the Mole Video Laryngoscope blade, improves visualization of the airway, increases maneuverability and working space reducing the risk of dental trauma.
 Ultimate Confidence & Control
 The Mole single-use handle provides significant grip and comfort, with reduced height to facilitate difficult intubation particularly for situations with limited neck movement and obesity.Optimal View
 Achieve the optimal screen viewing angle for you and the team, improving efficiency and decision making.
 Single-use safety
 The handle and blade of Mole Video Laryngoscope is a single-use device, reducing the risk of cross-infection, reprocessing costs, time and storage.

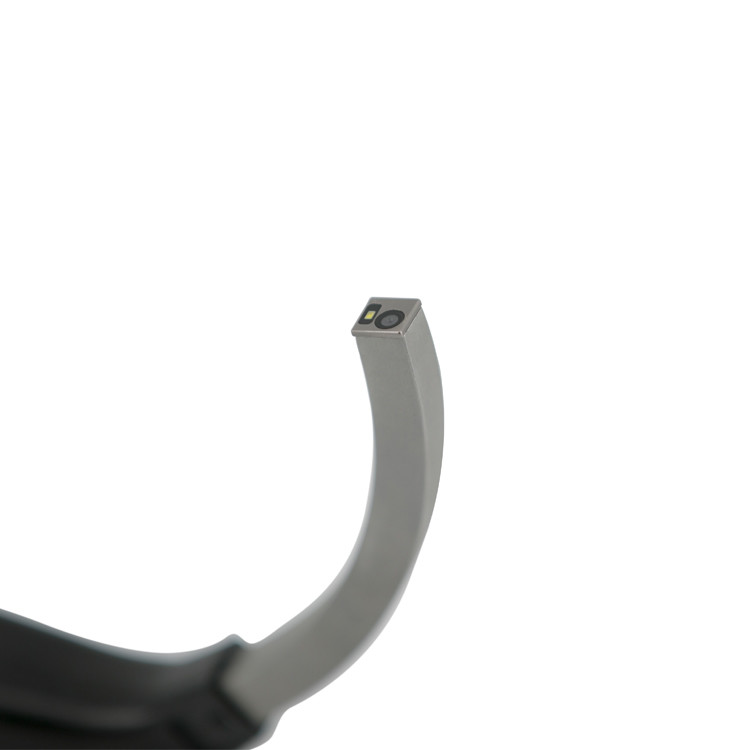

 100% All Metal Blade
 Specially engineered metal blade provides the confidence needed for direct and video laryngoscopy.
 Anti-Fog Design
 The internally mounted Anti-Fog design reduces the need for warm up time and allows users to intubate quickly with a clear view.

Packing list
	name	model	quantity	unit
1	suitcase	GH-IL/IS	1	set
2	main engine	GH-IL/IS	1	set
3	charger with data cable	5V1AMicro USB	1	piece

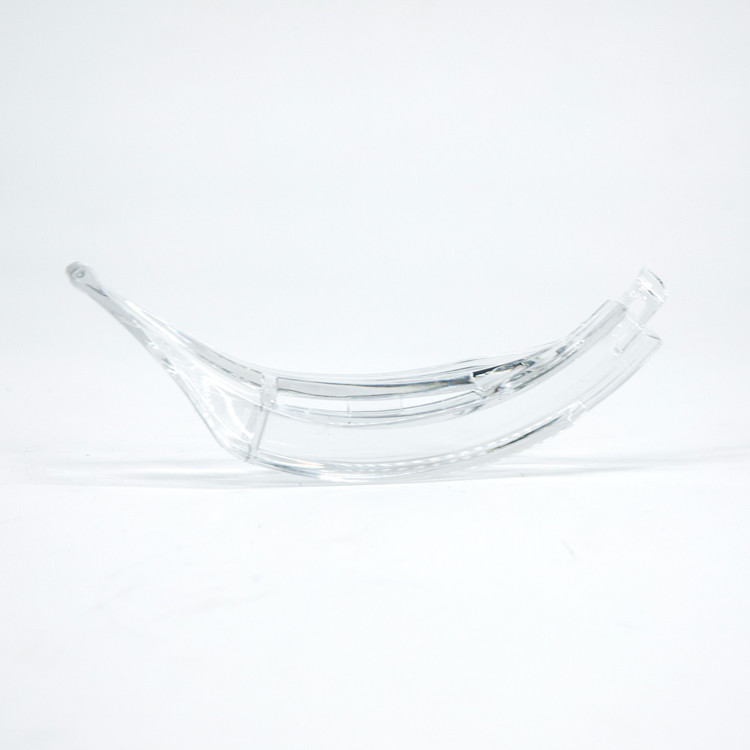

4	samples of disposable blades	0/1/2/3	1	piece
5	IFU	GH-IL/IS	1	piece
6	certificate of quality	GH-IL/IS	1	piece

Video Laryngoscope
Range of application:	Aneasthesiology department, ICU, Emergency department, Ambulance, Breathing department, etc.
Classification	Class I
Certificate approval	CE, NMPA, ISO13485
Model	GH-IL, GH-IS, GH-II

Items	Technical Name	Technical Indicators
Machine Parameters	Display	3"(OLED)
	Camera Resolution	960*480, 2Mpixels
	Illuminace(LUX)	800~1500
	light source	Natural white(LED)
	Rotating angles of the monitor in front and rear	30 º~150 º
	Rotating angles of the monitor in right and left	0 º~270 º
	Angle of vision	≥73º
	Discharging time of battery	>4h
	Power supply	Rechargeable 18650 3.7 lithium battery
	Charging times	>500times
	Weight of monitor	200g
Card	Media	Class 6 Micro SD flash card
	Strorage	8GB~64GB
	File format	JPEG, AVI
	Interface	1 mini USB, 1 SD card slot
Charger	Charger input	110~220V AC 50Hz
	Charger output	5V, 2600mA
	Charging time	<4(hrs)
	Temperature	10℃~40℃
Working environments	Humidity	10%-90%
	Atmospheric pressure	500hpa-1060hpa
	Temperature	-40℃~55℃
Transportation storage environments	Humidity	≤93%
Transportation storage environments	Atmospheric pressure	500hpa~1060hpa
Shelf life		5years
Warranty Period		1year
After-sale service		Return and replacement
