● Test Parameters Normal RBC,Standing RBC, Dysmorpuic RBC,Normal
WBC ,WBCC,Pus Cell ,Hyaline Cast ,Granular Cast,WBC Cast
,Squamous Epithelial Cell ,Normal Epithelial Cell ,Sperm ,Calcium
Crystal ,Oxalate Crystal Bacteria ,Yeast ,Amorphous Urates
,Mucus etc.
● Test Principle Flow cell digital imaging technology, medical
image fusion technology, artificial intelligence identification
technique
●Channel Four channels fixed flow counting cell
● Specimen Volume Minimum volume:3ml ,Aspiration volume: l ml
●Tset Speed 120 samples/hour
● Aspiration Volume 1 ml
● Tset Sensitivity<5 cells/ul
● Accuracy > 95%
● Repeatability CV < 10%
● Cross contamination rate < 0.05%
● Data storage 200,000
● Report Model International general quantitative unit: unit /ul &
HPF, complete and illustrated report, with urine
chemistry test results and urine sediment test results
● Environment Temperature 15°C-35°C, Relative humidity ≤75%
● Power supply AC220V ±10% 50Hz
● Dimensions (mainframe) 660mm × 440mm × 570mm (L ×W × H).
● Weight 33kg
【The highest 4-channel design in the industry】
4-channel injection design, channel settling, cleaning and other
detection functions fully guarantees the speed and efficiency of
specimen detection.
【Auto focus function 】
Automatic focus correction of the microscope ensures clear and
complete sample shooting,which reduces maintenance costs.
【Self-learning and training function】
The target of misidentification of the instrument can be modified
by the operator. After training, the memory can be stored and
automatically modeled.
★ Working principle
Use flow counting cell, medical image information scanning
technology and machine vision visual recognition technology to
automatically position, track, scan, identify, classify, count and
analyze the urine formed components.
★ Sample injection system
Fully automated orbital 10-tube specimen rack automatically senses
continuous sample injections, and the sample area to be tested
can accommodate 60 specimens at a time.
Automatic specimen scanning and positioning, real walk away, no
centrifugation, directly test with original urine, automatic
suction and mixing.

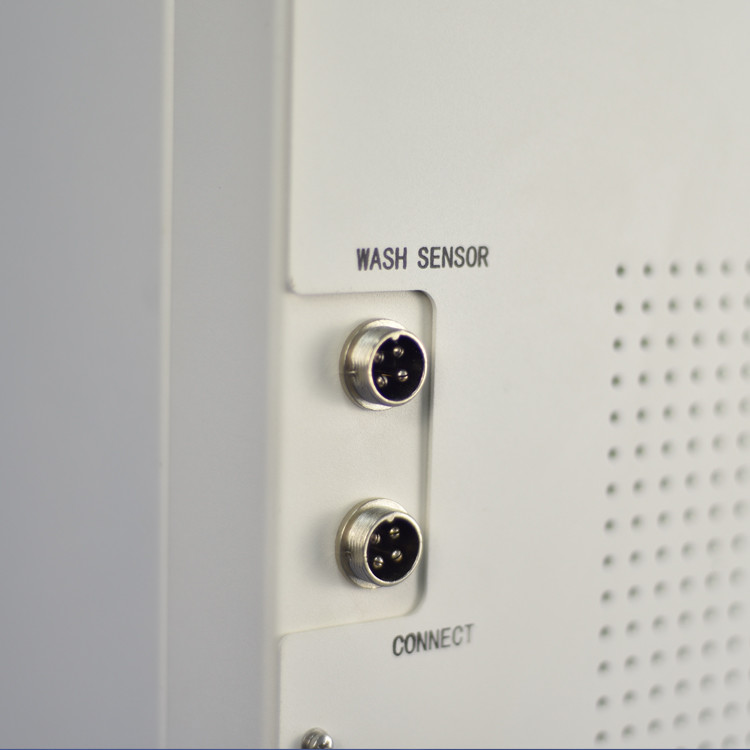

★ Flushing system
Use high-precision, PTFE-plated sample-sucking needles to make the
cleaning of the instrument pipeline more thoroughly and
cross-contamination is eliminated as much as possible.
Industry's highest 4-channel design
Single-needle 4-channel sampling design, the instrument has a
channel to detect other channels settlement, cleaning function, to
save the test time to the maximum, equivalent to 4 sets of
instruments in the test, and fully guarantee the speed and
efficiency
of the specimen detection.
★ Self-learning function
The target of instrument misidentification is modified by the
operator. After training, it can be stored and automatically
modeled.

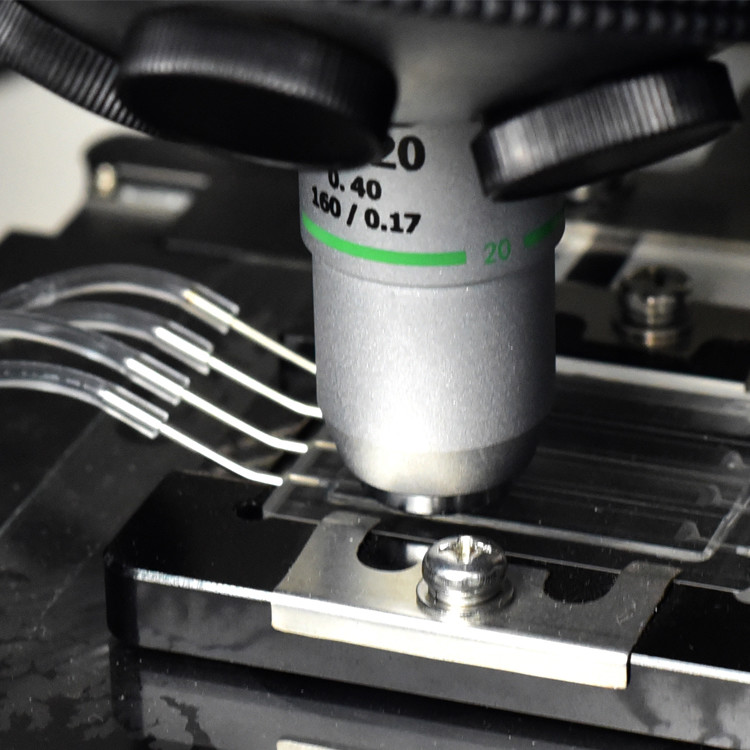

Automatic focusing function
After the instrument is used for a period of time, special focusing
liquid can be used to automatically correct the focal length
of the microscope to ensure clear and complete sample shooting.
